Orion Cross LED P4L Full Color
Cross LED resolution
AMAZING
The Orion P4L is the highest resolution LED cross in the Orion range. A revolution to offer an LED cross with two outdoor screens. And the best thing is its distinctive Full Colour. Insert texts, videos, images or whatever you need to advertise.
A special LED cross for pharmacies, vets, clinics, etc.
A big, beautiful LED cross ...
and very bright
Highlights
Orion Cross LED P4L Full Color
-
Pixels: 128*128px
-
Opening: Upward
-
Dimensions: 1453*1028mm (including claw)
-
Packaging dimensions: 1115*1115*185mm + claw
-
Weight: ± 57Kg net + claw / 63Kg with packaging
> Turnkey cross with configuration included

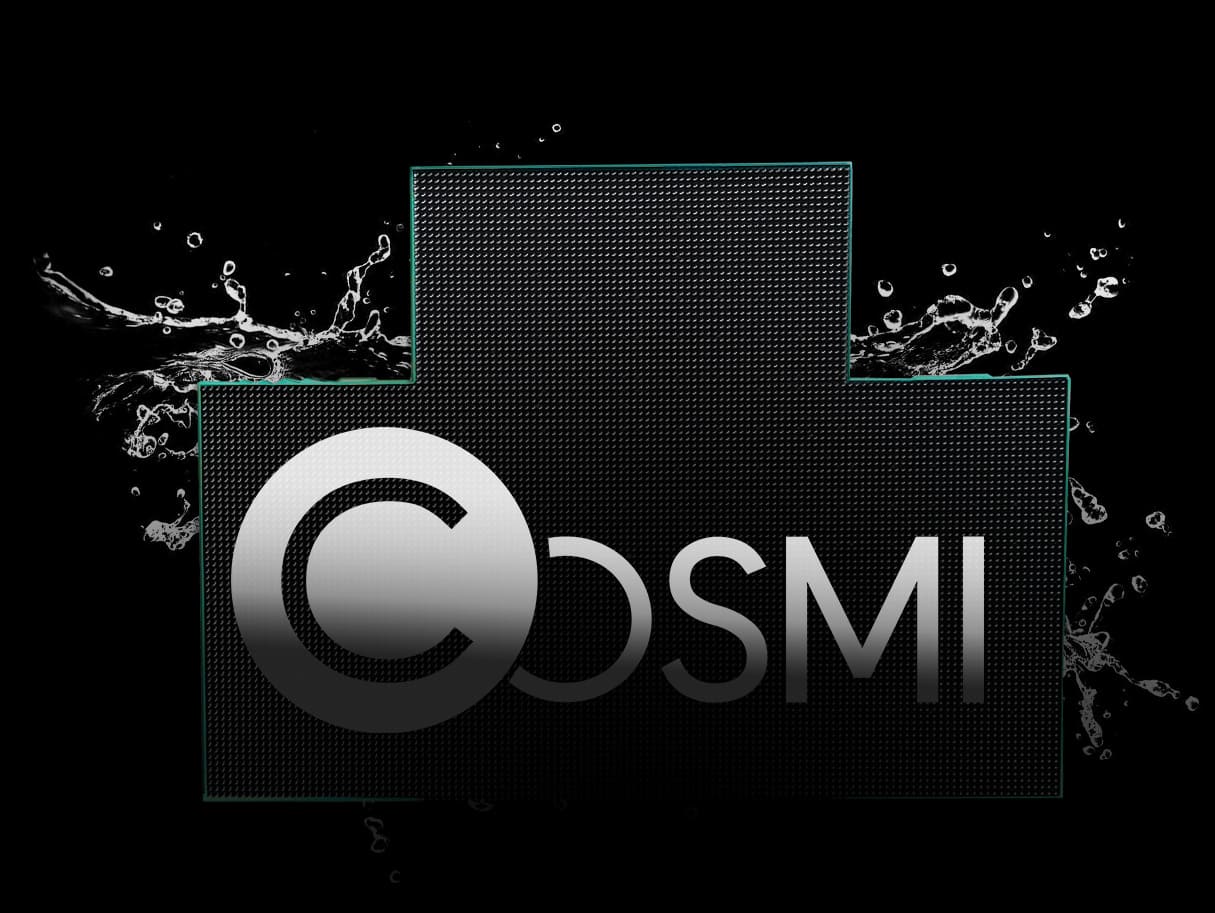

> Outdoor resistance
> Chassis designed for constant airflow and assured cooling

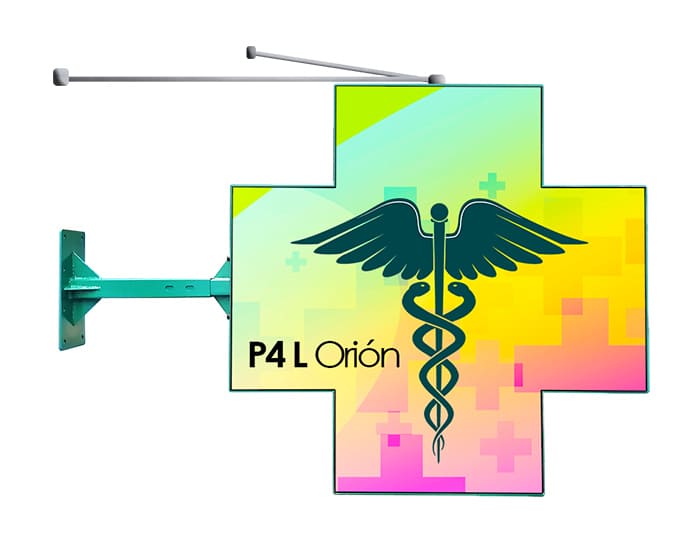

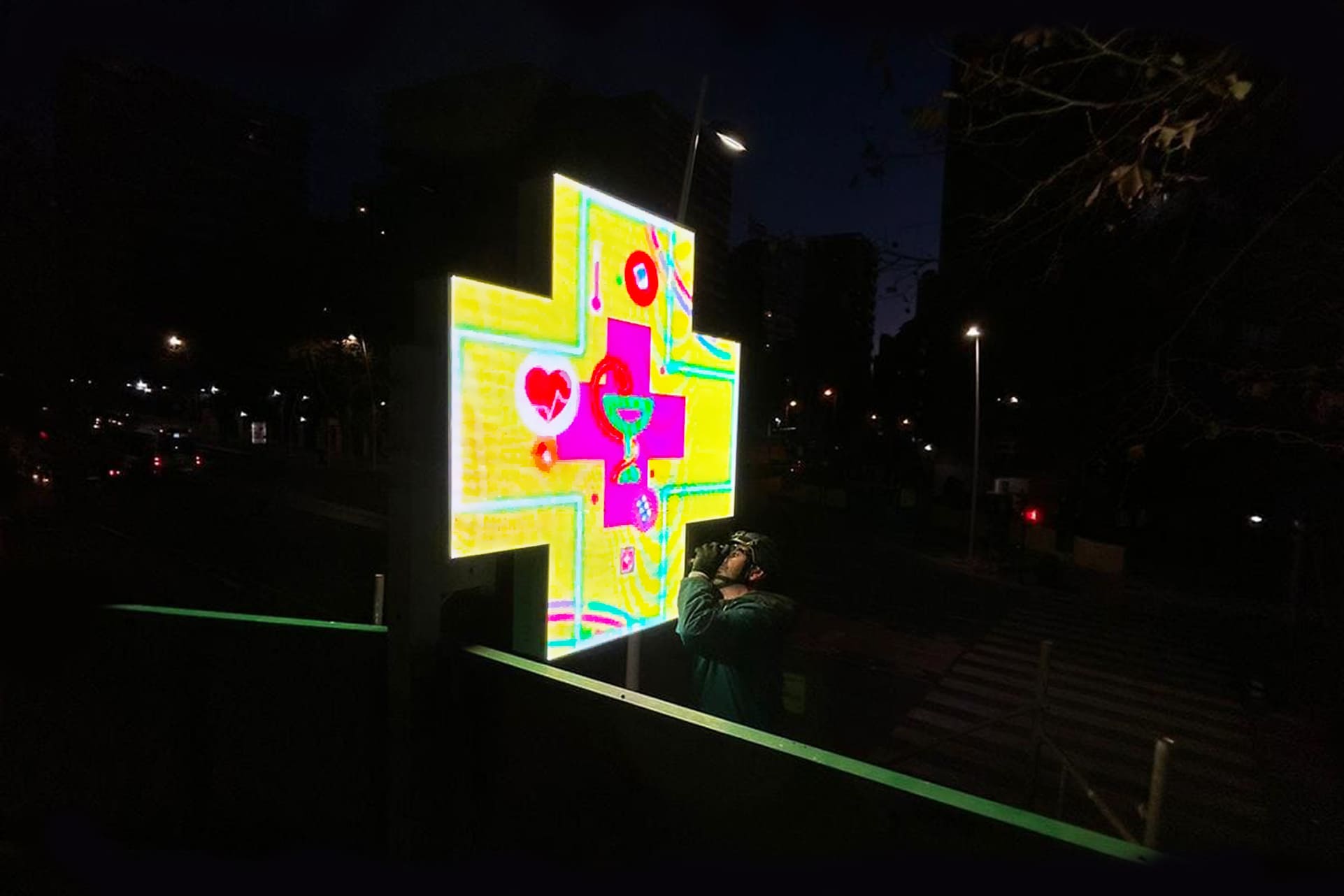

* Exhibition image. The Orion P4L cross is delivered as standard with its extendable claw. The Orion cross can also be installed vertically or as a lollipop using a claw for such installation (vertical claw not included). Available upon request.
Technical Features
Orion LED P4L Full Color Cross
Pitch
4mm
Avg. Consumption
±537w
Scan
1/8
Screen
LED:
SMD
Pitch:
4mm
Brightness:
±5,000/5,500nits
Pixels:
128*128px
Viewing
Viewing Distance:
±4 meters
Viewing Angle:
140º V/130º H
Operating Conditions
Operating Humidity:
20-45%
Operating Temperature:
-10º – +90º
Connectivity
Default transmitter card included.
*Turnkey or standardized equipment is ready to install.
RJ45 and USB Cable:
Included
Cloud Server:
No (optional)
4G:
No (optional)
WIFI:
Included
Services and Apps
iOS and Android App:
Included. Multilanguage
HD Player Software:
Included. Multilanguage
Video, Image, and Text
Video Playback Formats
MP4, M4V, 3GP, 3G2, WMV, ASF, AVI, FLV, MKV, WEBM
Image Playback Formats
JPG, PNG, TIFF, GIF, WebP, BMP
Text Playback Formats
PDF, Txt, Doc, Docx,
Other Features
Temperature Probe:
Included

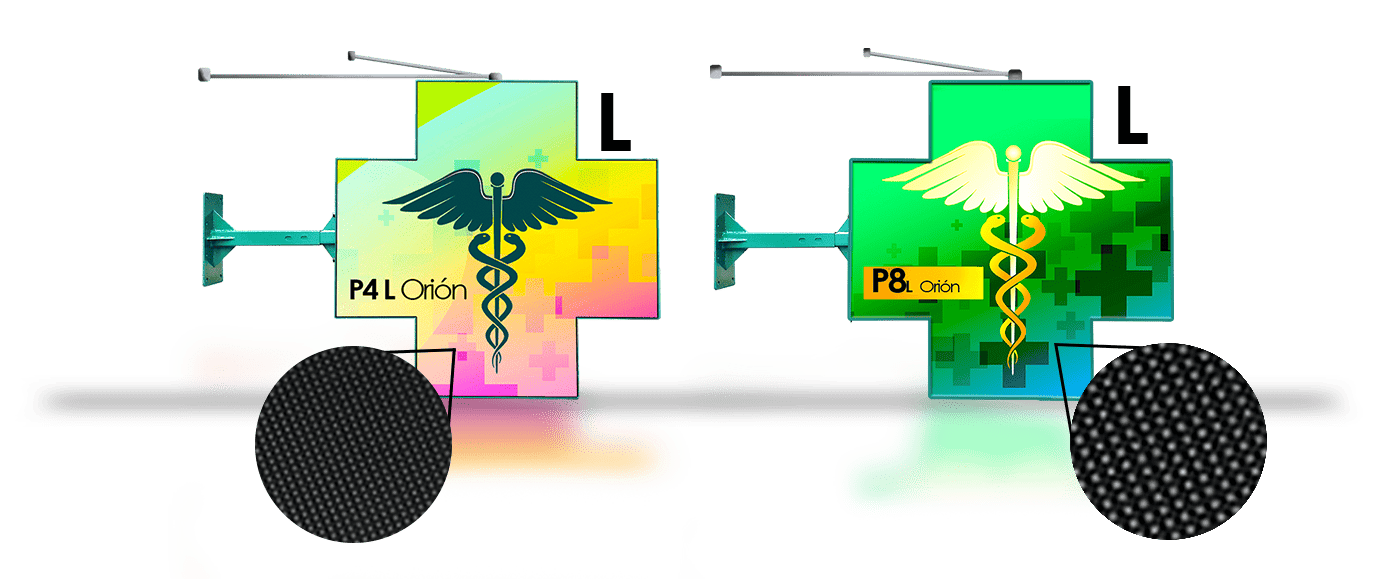

Two crosses of the same size, but different pixels
Comparison of Cosmi crosses
Orion Cross LED P4L Full Color
Guards covered

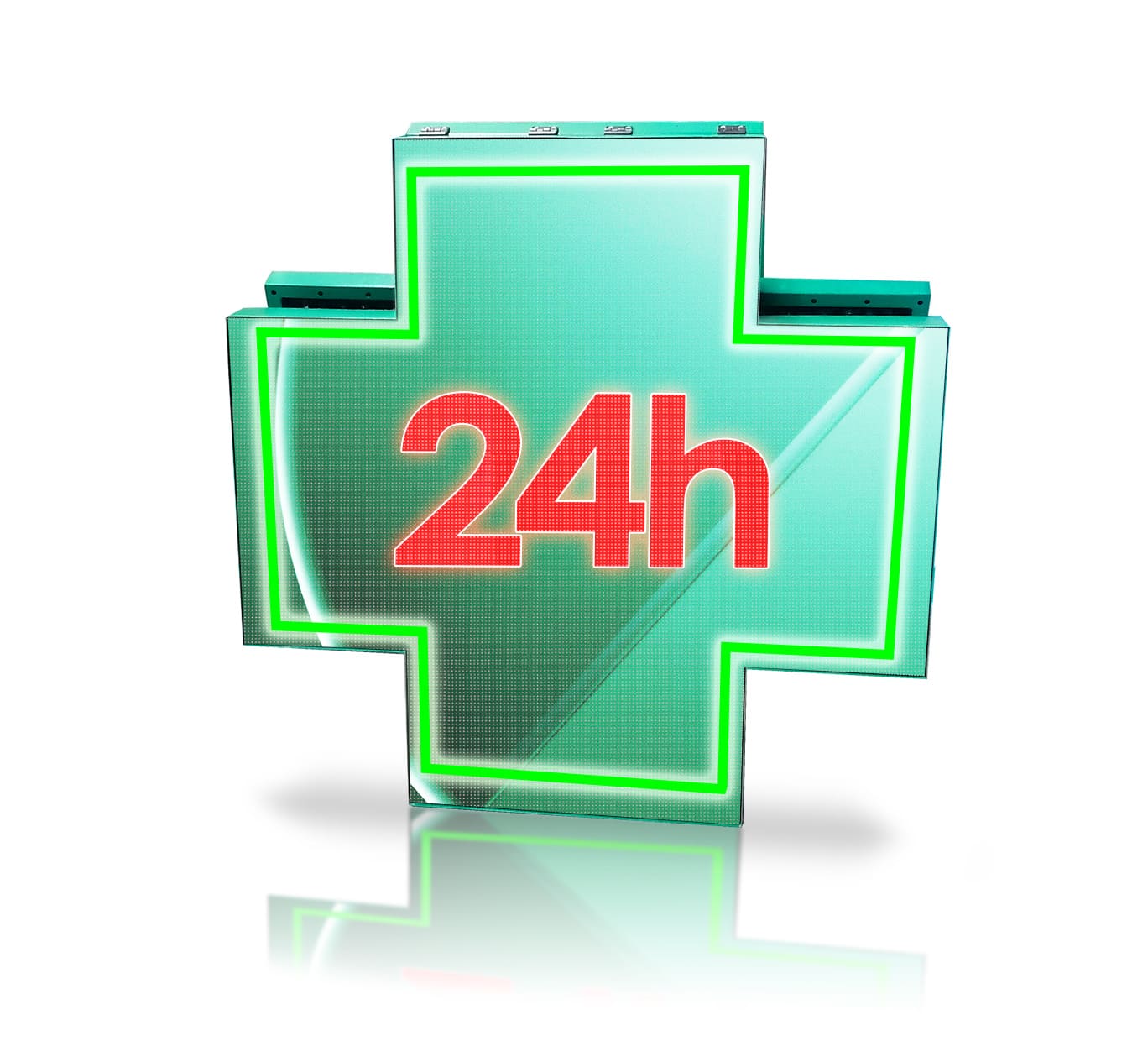

Information for your customers. Orion LED crosses inform you that the pharmacy is open, if it is on duty or gives information about the ambient temperature. Maximum performance in a high-resolution LED cross.
Orion LED Crosses
The latest generation of crosses
Orion cosmi p4L led cross
Orion P4L LED crosses to be installed in pharmacies, clinics, orthopaedics, etc. It identifies the place through a LED cross. But not only that, its extra large screen and slim edges give it added value. This LED cross with double screen for outdoor use is unique because of its 4mm pixel pitch. The highest resolution in an LED cross. Offering the possibility to place GIFs, videos, images, time, date and temperature, etc. It is also very easy to use, which makes it a unique advertising, communicative and informative tool.
And best of all, IT HAS THE COSMI SEAL.
Included probe capable of measuring and reporting the temperature and humidity of each zone.

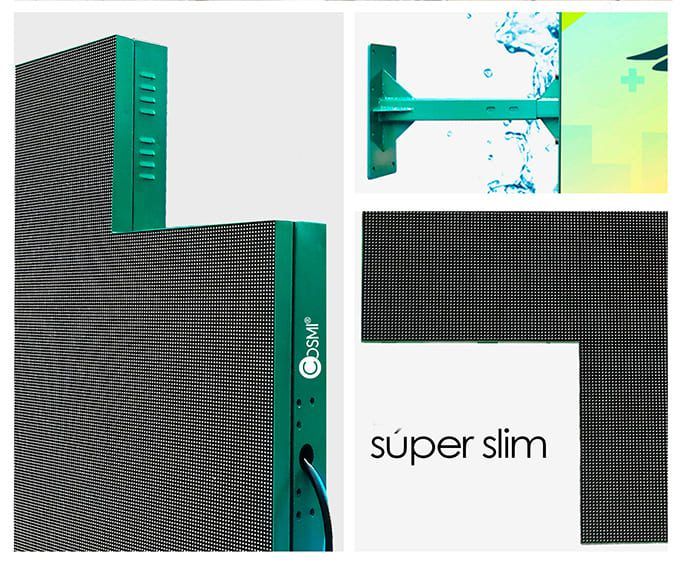

Cross Orion LED P4L Full Color. More screen and less borders

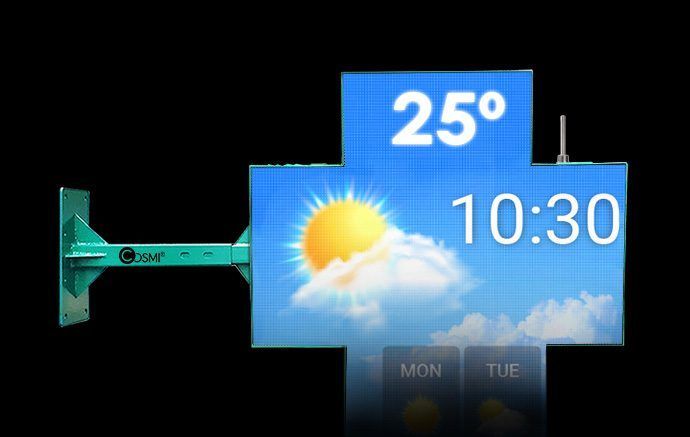

Ambient weather also in your Led cross. This could only be from Cosmi
Orion cross LED P4L Full Color
Orion cross LED P4L Full Color

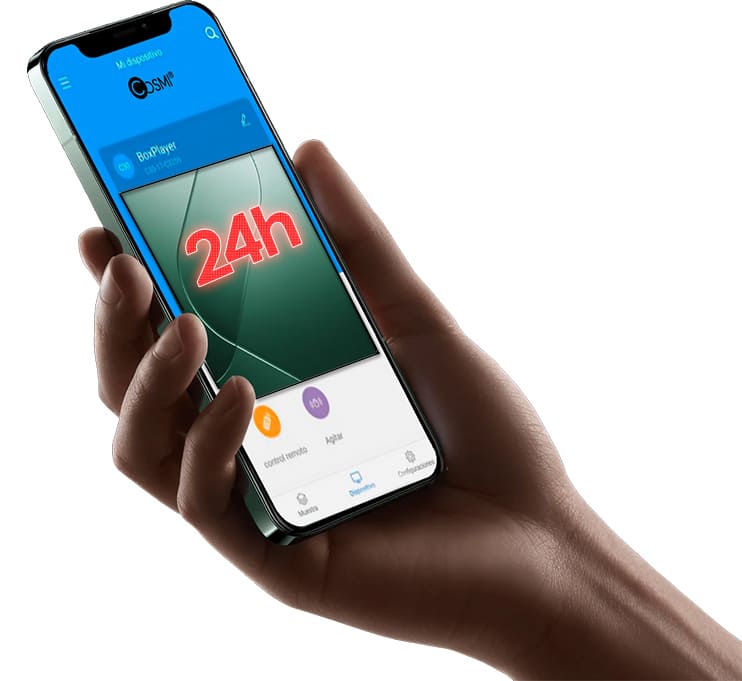

Always connected to your cross
Las cruces Cosmi incluyen un software y APP totalmente gratuita e intuitiva para manejar el contenido cada cruz. Inserta, envía, crea. Toda una herramienta informativa y publicitaria
